4-way/1-way/2-way/360° cassette fan coil unit
Item No.: 2

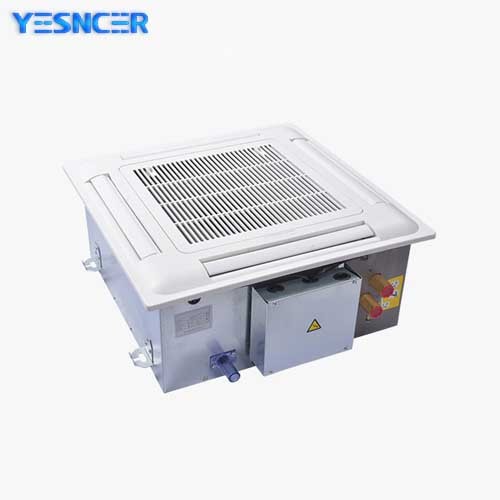

4-way cassette fan coil unit mainly consists of centrifugal fan and heat exchanger etc., which is one of the terminals in the central air conditioning system.
Description
Technical data
Related Products
YESNCER Announcement:
We're excited to inform you about our website update!
For more detailed product information, please visit the new YESNCER website.
https://yuexinhavc.com/
Take a look and explore what's new.
We appreciate your cooperation and support. Thank you!
4-way cassette fan coil unit mainly consists of centrifugal fan and heat exchanger etc., which is one of the terminals in the central air conditioning system.
Application
Hotel, restaurant, factory, exhibition hall, shopping mall and office buildings and so on.
1.Exquisite appearance，space-saving.
Although 4-way embedded fan coil unit is an open-top machine, it does not occupy any space because it can be hung in the ceiling. Besides, its appearance design is very good and looks very beautiful.
2.Full air supply
4-way cassette fan coil unit can supply air on all sides and take care of all aspects. Its airflow distribution is very uniform, so wind can be felt on all sides of it. Therefore, in any corner of it, everyone can feel its function and effect.
3.High efficiency ,low noise and low power consumption.
Three-dimensional spiral wind blade ensures wind volume and thinner shape, and irregular wind blade pitch greatly reduces operating noise.The low-noise three-speed capacitor motor of well-known domestic brands is adopted, with imported precision ultra-low-noise rolling bearing.Circular heat exchanger design, wind uniformity, seamless copper tube and new high-efficiency corrugated double curved open window hydrophilic aluminum foil fin, optimize flow design and effectively improve heat transfer efficiency.
4.Not easy to corrode,long service life.
Foam insulation, thickening foam insulation layer inside the fuselage, not easy to produce condensation beads in summer, not easy to corrode, and extend the service life.
5.Firm and durable
The DN20 pipe of water collecting head adopts forged brass structure, which is reliable and durable.
Technical Data of 2 Pipe Fan Coil Unit
| Model and performance |
|
FP34 |
FP51 |
FP68 |
FP85 |
FP102 |
FP136 |
FP170 |
FP204 |
FP238 |
Rated air flow
m3/h |
high |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
| Medium |
280 |
390 |
520 |
640 |
790 |
1030 |
1290 |
1500 |
1800 |
| low |
180 |
260 |
350 |
430 |
520 |
690 |
860 |
1030 |
1200 |
Rated cooling capacity
W |
high |
1980 |
2980 |
3680 |
4980 |
5580 |
7200 |
9900 |
10800 |
12600 |
| Medium |
1631 |
2279 |
2814 |
3750 |
4322 |
5534 |
7512 |
8088 |
9681 |
| low |
1048 |
1519 |
1894 |
2519 |
2854 |
5534 |
5008 |
5554 |
6454 |
Rated heating
capacity
W |
high |
2980 |
4800 |
5480 |
7200 |
8180 |
10800 |
14500 |
16200 |
18900 |
| Medium |
2454 |
3671 |
4191 |
5421 |
6335 |
8179 |
11005 |
12353 |
14521 |
| low |
1578 |
2447 |
2821 |
3600 |
4481 |
5479 |
7335 |
8482 |
9681 |
| The input power |
W |
34 |
50 |
58 |
72 |
92 |
126 |
128 |
152 |
198 |
The amount of water
m3/h |
0.42 |
0.52 |
0.62 |
0.86 |
0.98 |
1.08 |
1.58 |
1.78 |
1.92 |
Water press loss
Kpa |
14 |
14 |
16 |
18 |
22 |
25 |
39 |
44 |
46 |
| Motor number |
1 |
| power |
220V~240/50HZ |
|
Technical Data of 4 Pipe Fan Coil Unit
| Model and performance |
|
FP34 |
FP51 |
FP68 |
FP85 |
FP102 |
FP136 |
FP170 |
FP204 |
FP238 |
Rated air flow
m3/h |
high |
360 |
520 |
650 |
840 |
1000 |
1320 |
1660 |
1950 |
2090 |
| Medium |
290 |
420 |
510 |
670 |
800 |
1050 |
1330 |
1560 |
1670 |
| low |
220 |
310 |
390 |
500 |
600 |
790 |
1000 |
1170 |
1250 |
Rated cooling capacity
W |
high |
1980 |
2980 |
3680 |
4980 |
5580 |
7200 |
9900 |
10800 |
12600 |
| Medium |
1631 |
2279 |
2814 |
3750 |
4322 |
5534 |
7512 |
8088 |
9681 |
| low |
1048 |
1519 |
1894 |
2519 |
2854 |
5534 |
5008 |
5554 |
6454 |
Rated heating
capacity
W |
high |
1950 |
3000 |
3750 |
4850 |
5750 |
7400 |
9700 |
10900 |
11850 |
| Medium |
1700 |
2550 |
3200 |
4100 |
4850 |
6250 |
8200 |
9250 |
10050 |
| low |
1350 |
2000 |
2500 |
3250 |
3850 |
4950 |
6500 |
7300 |
7950 |
| The input power |
W |
34 |
50 |
58 |
72 |
92 |
126 |
128 |
152 |
198 |
The amount of water
m3/h |
0.42 |
0.52 |
0.62 |
0.86 |
0.98 |
1.08 |
1.58 |
1.78 |
1.92 |
Water press loss
Kpa |
14 |
14 |
16 |
18 |
22 |
25 |
39 |
44 |
46 |
| Motor number |
1 |
| power |
220V~240/50HZ |
|
Note:
1. The rated air volume refers to the outlet static pressure of 0Pa.
2. Cooling operation parameters: inlet air dry bulb temperature is 27℃, humidity temperature is 19.5℃, outlet water temperature is 7℃, return water temperature is 12℃.
3. Heating condition parameters: inlet air dry bulb temperature is 20℃, inlet water temperature is 60℃, outlet water temperature is 50℃.
