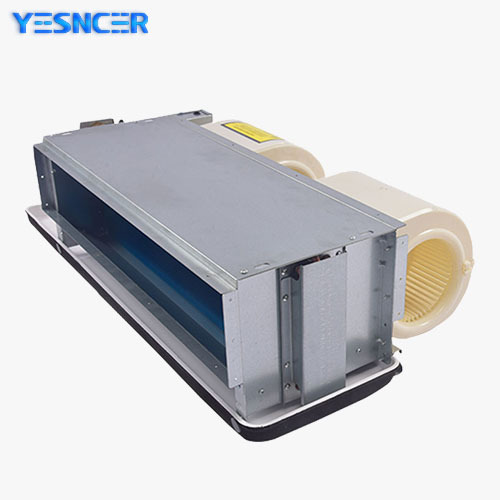

Horizontal concealed fan coil unit

Fan coil units are mainly composed of centrifugal fans and coil heat exchangers. It is the terminal device of the central air conditioning system.
Description Features & Advantages Technical data & product details



    Fan coil units are mainly composed of centrifugal fans and coil heat exchangers. FCU is the terminal device of the central air conditioning system. Fan coil unit mainly uses the forced action of the fan and the function of the air cooler to continuously or intermittently deliver air with a certain temperature difference to the room to maintain the heat and humidity balance and temperature of the room.
    Fan coil unit can be widely used in offices buildings and hotels, hospitals, restaurants, factories, clubs, exhibition halls, shopping malls and other multi-room or large space industrial and civil buildings for air conditioning. The compact size design saves you valuable installation space.
    Fan coils are used to meet the requirements of cooling, dehumidification, heating and so on, creating a fresh and tranquil working and living environment for mankind.



 1.The structure is exquisite, firm and durable.
This series of fan coil units adopt galvanized sheet casing. The frame is formed by using a first-class galvanized sheet through die processing, and has a firm structure and is not easy to deform.

2.High performance, high efficiency and low power consumption.
Fan coil heat exchanger adopts high-quality 9.52mm copper tube, high-efficiency hydrophilic coated aluminum fin and advanced tube expanding process to make the copper tube and aluminum foil reach the best contact. In addition, a fan with large air volume and low noise is used to enhance heat transfer, so that the unit can give full play to the most ideal heat transfer efficiency. The water-collecting head is forged with brass, which makes the water flow evenly distributed and reduces the pressure loss, further improving the overall heat transfer effect of the fan coil unit. Permanent low noise capacitor motor is adopted, rolling bearings are fully packaged, and lubricating oil does not need to be added.
3.The operation is quiet and never rusts.
The base is shock-proof with rubber to isolate vibration and reduce running noise. The wind wheel is high-efficiency low-noise multi-wing centrifugal fan blade. It is made of galvanized sheet with high dynamic balance. Pittsburgh-type engagement is adopted between the main board and the side board of the air shell.

4.No condensation, no water leakage

High-grade steel plate die one-step stamping process is adopted, without welding seams and welding spots, and the surface is treated by hot dipping and electric painting. 7mmPE thermal and warm-keep insulation is integrally bonded to the water pan; Not only is the processing simple and the appearance beautiful, but also the phenomenon that the welded water pan is easy to drip and leak is eliminated, and the service life of the water pan is greatly prolonged. The width and length of the water pan can cover the piping space of the water inlet and outlet electric valve to ensure the water collection effect.

5.Easy adjustment and maintenance

Motor of top branch, the top brand in China, is adopted, and the bearings used are rolling bearings.  The motor shaft is made of quenched and tempered steel, the surface of which has been specially treated for rust prevention and is durable.  Optional three-speed switch or thermostat, easy to operate, can adjust indoor air volume and cooling capacity.

6.High flexibility and low installation cost

The design of the machine body is light, the installation of drain pipes and lines is simple, and the direction of left-right connection and return air can be changed to match the site conditions.

7.Flexible and convenient selection (optional)

Configurable electric heating function; PTC electric heating is selected for safety and high efficiency.
Can be equipped with high static pressure fan, suitable for installation with air duct, etc.
Return bellows (lower return air and rear return air) can be configured to facilitate connection of air pipes;
A new air outlet of the return air box can be configured;
Configurable detachable air filter screen; Forms: nylon filter screen, aluminum alloy frame nylon filter screen, aluminum alloy frame full aluminum filter screen, photocatalyst filter screen;

Can be equipped with a lengthened water pan (extended-increased by 250mm) to better store valve leakage and condensed water;
Can be equipped with stainless steel condensate pan (standard, extended-250mm more).



 How the fan coil unit works ?















There are 9 specifications of the product.

Model and performance   FP34 FP51 FP68 FP85 FP102 FP136 FP170 FP204 FP238
Rated air flow
M3/h
high 340 510 680 850 1020 1360 1700 2040 2380
Medium 260 390 510 640 770 1020 1280 1530 1790
low 170 260 340 430 510 680 850 1020 1190
Rated cooling capacity kw 1.8 2.7 3.6 4.5 5.4 7.2 9.0 10.8 12.6
Kcal/h 1548 2322 3096 3870 4644 6192 7740 9288 10836
Rated heating
capacity
kw 2.7 4.05 5.4 6.75 8.1 10.8 13.5 16.1 18.9
Kcal/h 2322 3483 4644 5805 6966 9288 11610 13932 16254
The input power
W
12Pa 37 52 62 76 96 134 152 189 228
30Pa 44 59 72 87 108 156 174 212 253
50Pa 49 66 84 100 118 174 210 250 300
The amount of water
Kg/h
319 478 638 797 956 1275 1594 1913 2232
Flow resistance
Kpa
30 30 30 30 40 40 40 40
power 220V/50HZ

Details:





Cooling coil -Fins :
High purity seamless coper tube , adpot mechanical expansion pipe, High stength expansion joint connected tightly with fins improve hea exchange efficiency .














Motor :
Capaitance , low noise fully enlosed rolling bearing













      Collecting Head :

       Forging brass,the water flow distribution uniformity
