Elegant, environmentally friendly water-cooled fan coil units designed for four months of high temperatures

Name: Elegant, environmentally friendly water-cooled fan coil units designed for four months of high temperatures
Brand: Yesncer HVAC Manufacturers
SKU: 62324486822
Price: 169.30 USD
Availability: InStock
Rating: 5 (1 reviews)

No.62324486822

$169.30

Model Number:

FP-34

FP-51

FP-68

FP-85

FP-102

Power:

31w

47w

55w

70w

83w

GET A QUOTE

Description
Service
Packing & Delivery
Company Profile

Product descriptions from the supplier

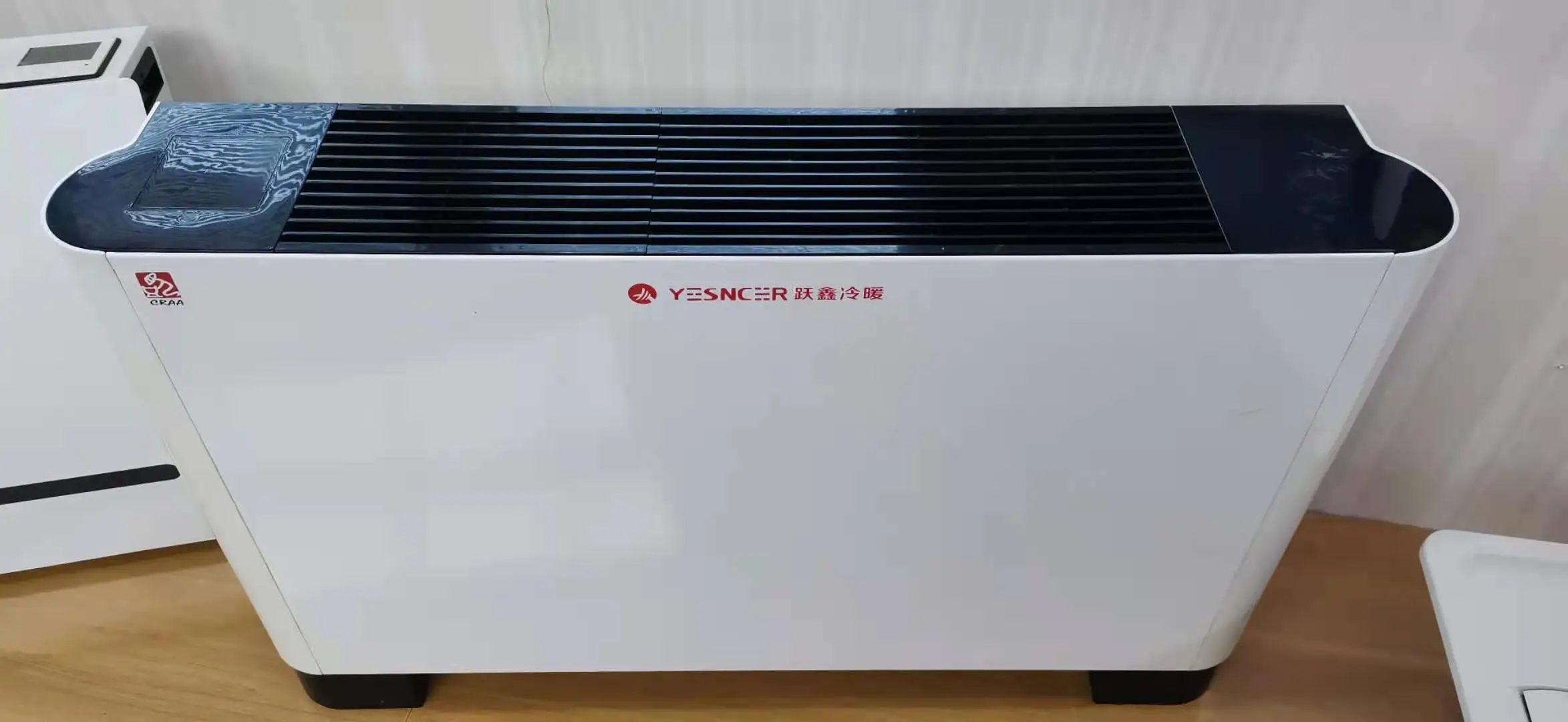

Hot sell floor standing or ceiling horizontal fcu ultra thin fan coil unit

Model	FP-34	FP-51		FP-68		FP-85		FP-102
Cooling capacity(kw) (CHW 7℃)	1.8	2.7		3.6		4.5		5.4
Heating capacity(kw) (HW 60℃)	2.7	4.05		5.4		6.75		8.1
Air flow(m³/h)	340	510		680		850		1020
Power input(w)	31	47		55		70		83
Noise dba	37	39		41		43		45
Motor NO.	1
Fan NO.	1			2		2		2
Weight(kg)	14.7	15.1		17.2		17.9		20.6
Packing length(mm)	770	920		1020		1070		1270
Packing height(mm)	590
Packing width(mm)	240
Condenser length(mm)	400		550		650		700		900
Condenser hight(mm)	210
Condenser thichkness(mm)	45

Hot sell floor standing or ceiling horizontal fcu ultra thin fan coil unit

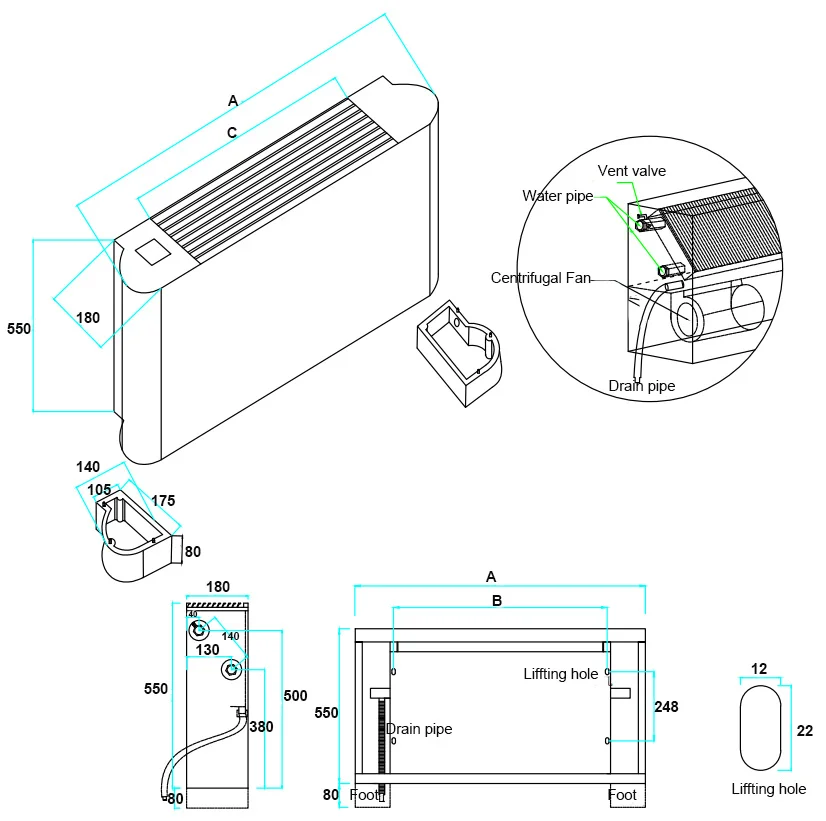

Size(mm)
Model	FP-34	FP-51	FP-68	FP-85	FP-102
A Total length	752	902	1002	1052	1252
B Length of air outlet	400	550	650	700	900
C Distance between liffting holes	430	580	680	730	930

Hot sell floor standing or ceiling horizontal fcu ultra thin fan coil unit

• 10year HVAC & Refirgeration factory.

Technical Services

1,Free design service.

2,Free project proposal.

3,On-line technical support.

Sales service

1,1 hour response.

2,24x7 online service.

3,English, Spain, Frence, Russia.

Hot sell floor standing or ceiling horizontal fcu ultra thin fan coil unit

SERVICE WE SUPPLY
The CAD design drawing plan of the project			We will following the goods delivery untill you are available
We will send you the test report before shipping			Supply the installation and maintanence instruction maximum energy output online
The free spare parts available			If any quality problem of product, we can refund you
You can get us at any time, after order placed			Three years' warranty

Baoding Yesncer Heating & Cooling Equipment Manufacturing Co., Ltd. is a technology enterprise specializing in technology innovation of the central air-conditioning terminal production and use, located in the ancient city of Baoding, near to the national-level Xiong'an New District with convenient transportation and unlimited potential.
The main products include: central air conditioner terminal such as horizontal concealed fan coil, universal mounted fan coil, ultra-thin fan coil, 4-way cassette fan coil and basic air conditioner such as domestic air conditioner, air source heat pump, heat pump, hot air blower, hydraulic module, etc.
Research and development technical force: We have a air conditioning box, wind disk and main engine research and development design technical team with more than 10 years experience and the software for coil and fan selection.

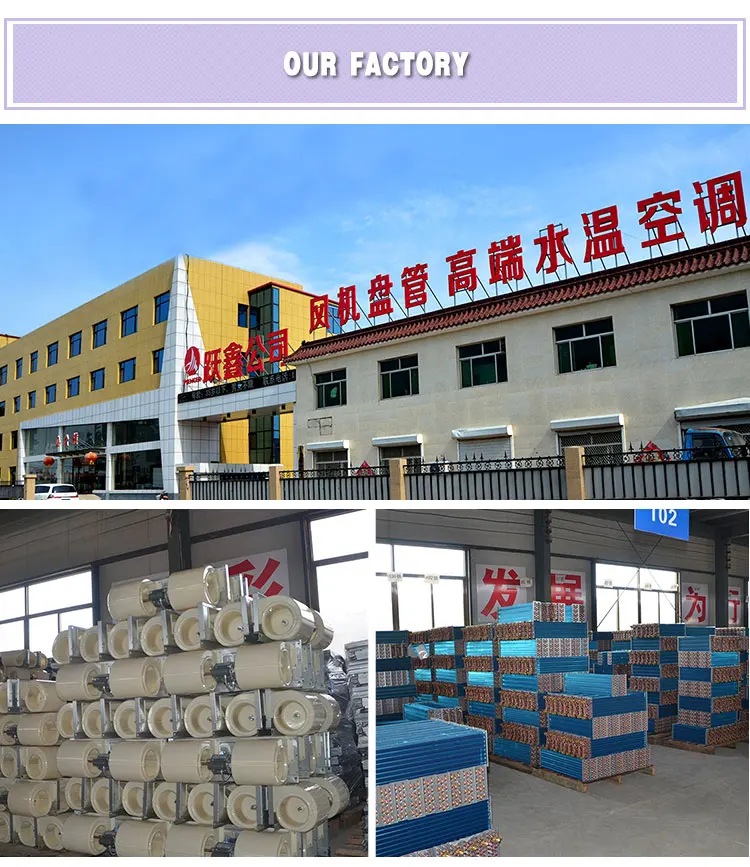

Own production and inspection equipment: Sheet metal production equipment: CNC turret punch press, CNC shearing machine, CNC bending machine, etc.
Coil production equipment: high-speed punching machine, tube expanding machine, pipe bending machine, copper pipe straightening cutting machine, etc.
Panel production equipment: rice gold opener, high pressure foaming machine, laminating machine, etc. Assembly production line: fan coil unit assembly line, air handling unit assembly line, etc.
Test equipment: test room, electrical safety monitoring equipment, air handling unit air volume test bench, coil pressure test equipment, etc. From 100% incoming inspection of important components to 100% product safety inspection, Yesncer implement programmed assembly line operation and strictly control quality in every process.Whats more, Yesncer set up the minus 25 degrees enthalpy difference laboratory for ensuring each product can run stably and normally.
Guaranteed delivery time: Advanced ERP management system is applied to help us complete the production plan smoothly. Yesncer is professional and dedicated to the R&D, design and production of air handling equipment, of which appearance design has obtained the national patent certification and safety performance passed Hefei General Machinery Research Institute and Beijing National Air Conditioning Testing Center's test.
We can provide reliable guarantee for your production or life and high quality and convenient service for the maintenance of air conditioning.
Our target: To be the expert of designing and manufacturing high quality air handling equipment. We uphold the concept that quality is our life and professional and efficient and meticulous service is our eternal pursuit.
Yesncer's vision: To meet the needs of people's comfortable life by providing high-tech, green, energy-saving and environment-friendly HAVC products. Yesncer's mission: To create a global air-conditioning terminal matching and machining center. We have the first-class evaporator, condenser and sheet metal processing equipment. Self-developed control system is more intimate that is to say we master the core technology.
We can supply OEM service or air conditioning matching solution for customer
