Extremely hot climates require more environmentally friendly and efficient water-cooled fan coil air conditioning equipment

Name: Extremely hot climates require more environmentally friendly and efficient water-cooled fan coil air conditioning equipment
Brand: Yesncer HVAC Manufacturers
SKU: 62307638786
Price: 300.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.62307638786

$300.00

Model Number:

FP-170

Power:

230 VAC

GET A QUOTE

Description
Service
Packing & Delivery
Company Profile

Product descriptions from the supplier

Water card fan coil unit for central air conditioner system

The low-noise three-speed capacitor motor of well-known domestic brands is adopted, with imported precision ultra-low-noise rolling bearing.

Water card fan coil unit for central air conditioner system

Three-dimensional spiral wind blade ensures wind volume and thinner shape, and irregular wind blade pitch greatly reduces operating noise.

Water card fan coil unit for central air conditioner system

The pipe of water collecting head adopts forged brass structure, which is reliable and durable.

Water card fan coil unit for central air conditioner system

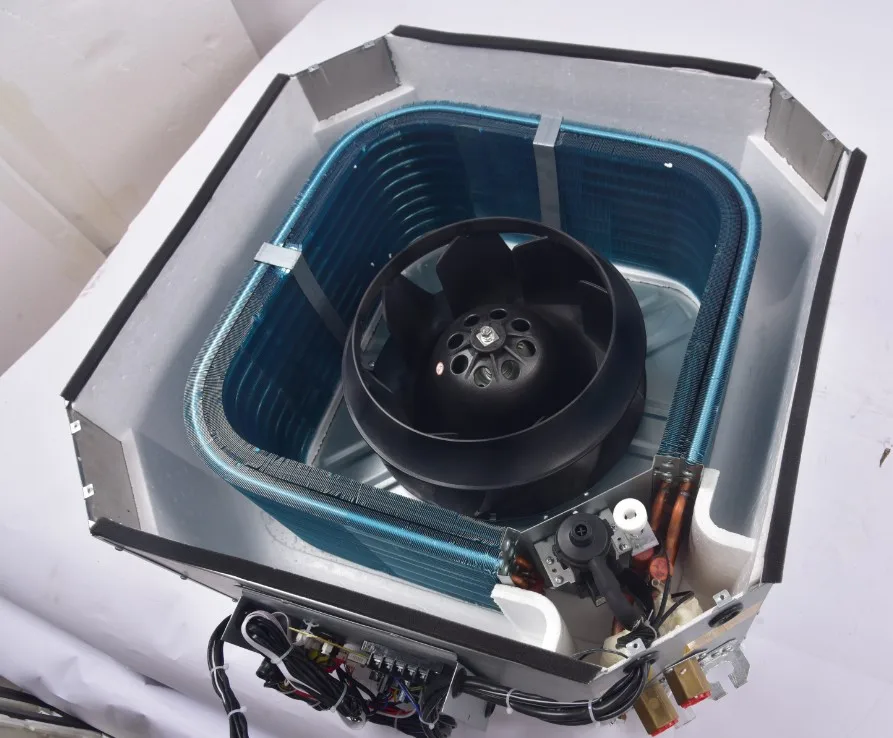

Circular heat exchanger design, wind uniformity, seamless copper tube and new high-efficiency corrugated double curved open window hydrophilic aluminum foil fin, optimize flow design and effectively improve heat transfer efficiency.

Water card fan coil unit for central air conditioner system

Foam insulation, thickening foam insulation layer inside the fuselage, not easy to produce condensation beads in summer, not easy to corrode, and extend the service life.

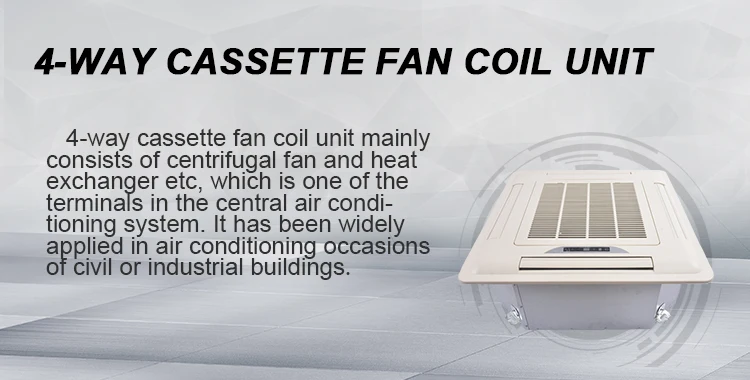

4-way cassette fan coil unit

Model and performance		FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Rated air flow m3/h	high	340	510	680	850	1020	1360	1700	2040	2380
	Medium	280	390	520	640	790	1030	1290	1500	1800
	low	180	260	350	430	520	690	860	1030	1200
Rated cooling capacity W	high	1980		3680	4980	5580	7200	9900	10800	12600
	Medium	1631	2279	2814	3750	4322	5534	7512	8088	9681
	low	1048	1519	1894	2519	2854	5534	5008	5554	6454
Rated heat W	high	2980	4800	5480	7200	8180	10800	14500	16200	18900
	Medium	2454	3671	4191	5421	6335	8179	11005	12353	14521
	low	1578	2447	2821	3600	4481	5479	7335	8482	9681
The input power	W	34	50	58	72	92	126	128	152	198
The amount of water m3/h		0.42	0.52	0.62	0.86	0.98	1.08	1.58	1.78	1.92
Water press loss Kpa		14	14	16	18	22	25	39	44	46
Motor number		1	2				3	4
power	220V~240/50HZ

1. The rated air volume refers to the outlet static pressure of 0Pa.
2. Cooling operation parameters: inlet air dry bulb temperature is 27℃, humidity temperature is 19.5℃, outlet water temperature is 7℃, return water temperature is 12℃.
3. Heating condition parameters: inlet air dry bulb temperature is 20℃, inlet water temperature is 60℃, outlet water temperature is 50℃.

Water card fan coil unit for central air conditioner system

Our Services

Pre-Sales Service
*Tell customers how to use our products and matters needing attention.
* Guide customers to choose the best and economic product, recover the investment within short time. .
* Site inspection if you need.

After-Sales Service
* If the project needs our installation guidance, we can send our engineer

and translator. We can also send customers installation video to teach them

how to fix and operate with our product.
*Usually, our product warranty is 36months after leaving factory . within

this months, all parts broken will be responsible for our factory.

SERVICE WE SUPPLY
The CAD design drawing plan of the project			We will following the goods delivery untill you are available
We will send you the test report before shipping			Supply the installation and maintanence instruction maximum energy output online
The free spare parts available			If any quality problem of product, we can refund you
You can get us at any time, after order placed			Three years' warranty

Baoding Yesncer Heating & Cooling Equipment Manufacturing Co., Ltd. is a technology enterprise specializing in technology innovation of the central air-conditioning terminal production and use, located in the ancient city of Baoding, near to the national-level Xiong'an New District with convenient transportation and unlimited potential.
The main products include: central air conditioner terminal such as horizontal concealed fan coil, universal mounted fan coil, ultra-thin fan coil, 4-way cassette fan coil and basic air conditioner such as domestic air conditioner, air source heat pump, heat pump, hot air blower, hydraulic module, etc.
Research and development technical force: We have a air conditioning box, wind disk and main engine research and development design technical team with more than 10 years experience and the software for coil and fan selection.
Own production and inspection equipment: Sheet metal production equipment: CNC turret punch press, CNC shearing machine, CNC bending machine, etc.
Coil production equipment: high-speed punching machine, tube expanding machine, pipe bending machine, copper pipe straightening cutting machine, etc.
Panel production equipment: rice gold opener, high pressure foaming machine, laminating machine, etc. Assembly production line: fan coil unit assembly line, air handling unit assembly line, etc.
Test equipment: test room, electrical safety monitoring equipment, air handling unit air volume test bench, coil pressure test equipment, etc. From 100% incoming inspection of important components to 100% product safety inspection, Yesncer implement programmed assembly line operation and strictly control quality in every process.Whats more, Yesncer set up the minus 25 degrees enthalpy difference laboratory for ensuring each product can run stably and normally.
Guaranteed delivery time: Advanced ERP management system is applied to help us complete the production plan smoothly. Yesncer is professional and dedicated to the R&D, design and production of air handling equipment, of which appearance design has obtained the national patent certification and safety performance passed Hefei General Machinery Research Institute and Beijing National Air Conditioning Testing Center's test.
We can provide reliable guarantee for your production or life and high quality and convenient service for the maintenance of air conditioning.
Our target: To be the expert of designing and manufacturing high quality air handling equipment. We uphold the concept that quality is our life and professional and efficient and meticulous service is our eternal pursuit.
Yesncer's vision: To meet the needs of people's comfortable life by providing high-tech, green, energy-saving and environment-friendly HAVC products. Yesncer's mission: To create a global air-conditioning terminal matching and machining center. We have the first-class evaporator, condenser and sheet metal processing equipment. Self-developed control system is more intimate that is to say we master the core technology.
We can supply OEM service or air conditioning matching solution for customer
